ASUS PRIME B450-PLUS Moderkort AM4, ATX, DDR4,2x PCIe-x16, 1x M.2, USB 3.1

Förstasidan ASUS PRIME B450-PLUS Moderkort AM4, ATX, DDR4,2x PCIe-x16, 1x M.2, USB 3.1
Du måste logga in för att kunna handla/se priser.
ASUS PRIME B450-PLUS Moderkort AM4, ATX, DDR4,2x PCIe-x16, 1x M.2, USB 3.1 (90MB0YN0-M0EAY0)

ASUS PRIME B450-PLUS Moderkort AM4, ATX, DDR4,2x PCIe-x16, 1x M.2, USB 3.1

Artikelnr:
90MB0YN0-M0EAY0
EAN:
4718017075671
  • Processor-socket Uttag AM4
  • Chipset AMD B450
  • M.2 Slot 1
  • Minnesplatser 4 x DIMM, DDR4
  • Maximal RAM-frekvens 3.466GHz
  • Max minne stöds 64GB
  • Formfaktor ATX
Beskrivning

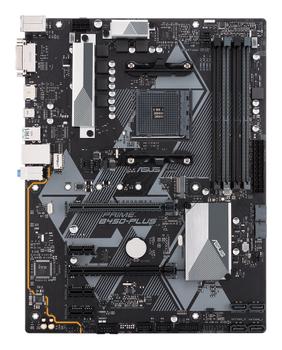

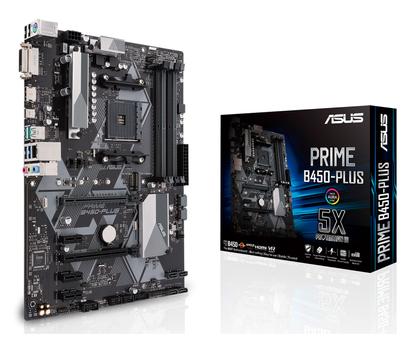

PRIME B450-PLUS


AMD AM4 ATX motherboard with Aura Sync RGB header, DDR4 3466MHz, M.2, HDMI 2.0b, SATA 6Gbps and USB 3.1 Gen 2


Features:

  • Fan Xpert 4 Core: Comprehensive controls for fans and AIO pump, plus GPU-temperature sensing for cooler gaming
  • Ultrafast connectivity: Supreme flexibility with USB 3.1 Gen 2 and native M.2
  • ASUS Aura Sync header: Onboard connector for RGB LED strips, easily synced with an ever-growing portfolio of Aura Sync-capable hardware
  • 5X Protection III: Multiple hardware safeguards for all-around system protection


Specifications:

  • CPU
    AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors
    Supports CPU up to 8 cores
  • Chipset
    AMD B450
  • Memory
    AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
    4 x DIMM, Max. 64GB, DDR4 3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
    Dual Channel Memory Architecture
    ECC Memory (ECC mode) support varies by CPU.
  • Graphic
    Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
    Multi-VGA output support : HDMI/DVI-D ports
    - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
    - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
  • Multi-GPU Support
    Supports AMD CrossFireX™ Technology
  • Expansion Slots
    AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors
    1 x PCIe 3.0/2.0 x16 (x16 mode)
    AMD Ryzen™ with Radeon™ Vega Graphics Processor
    1 x PCIe 3.0/2.0 x16 (x8 mode)
    AMD Athlon™ with Radeon™ Vega Graphics Processors
    1 x PCIe 3.0/2.0 x16 (x4 mode)
    AMD B450 chipset
    1 x PCIe 2.0 x16 (max at x4 mode)
    3 x PCIe 2.0 x1
  • Storage
    AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    AMD Athlon™ with Radeon™ Vega Graphics Processors :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)
    AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
    2 x SATA 6Gb/s port(s)
    Support Raid 0, 1, 10
    AMD B450 chipset :
    4 x SATA 6Gb/s port(s),
    Support Raid 0, 1, 10
  • LAN
    Realtek® RTL8111H
    ASUS LAN Guard
  • Audio
    Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC
    Audio Feature :
    - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
    - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
    - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
  • USB Ports
    AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
    2 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A)
    AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
    1 x USB 3.1 Gen 1 port(s) (1 at back panel, , USB Type-CTM)
    AMD B450 chipset :
    2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A)
    AMD B450 chipset :
    2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
    AMD B450 chipset :
    6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
  • Special Features
    ASUS 5X Protection III :
    - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
    - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
    - ASUS Overvoltage Protection: World-class circuit-protecting power design
    - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
    - ASUS DIGI+ VRM: 6 Phase digital power design
    ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger
    - PC Cleaner
    - File Transfer
    ASUS Quiet Thermal Solution :
    - Stylish Fanless Design Heat-sink solution & MOS Heatsink
    - ASUS Fan Xpert 4 Core
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    ASUS Q-Design :
    - ASUS Q-Slot
    - ASUS Q-DIMM
    Overclocking Protection :
    - ASUS C.P.R.(CPU Parameter Recall)
  • Back I/O Ports
    1 x PS/2 keyboard/mouse combo port(s)
    1 x DVI-D
    1 x HDMI
    1 x LAN (RJ45) port(s)
    1 x 5Gb/s port(s) USB Type-CTM
    2 x USB 3.1 Gen 2 (teal blue)Type-A,
    2 x USB 3.1 Gen 1 (blue) Type-A,
    2 x USB 2.0
    3 x Audio jack(s)
  • Internal I/O Ports
    1 x Aura RGB Strip Header
    1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    6 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    3 x Chassis Fan connector(s) (3 x 4 -pin)
    1 x AIO_PUMP connector (1 x 4 -pin)
    1 x S/PDIF out header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s)
    1 x Clear CMOS jumper(s)
    1 x COM port header
  • Accessories
    User's manual
    I/O Shield
    2 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x Supporting DVD
  • BIOS
    128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information
  • Manageability
    WOL by PME, PXE
  • Operating System
    Windows® 10 64-bit
    Windows® 7 64-bit
  • Form Factor
    ATX Form Factor
    12.0 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
